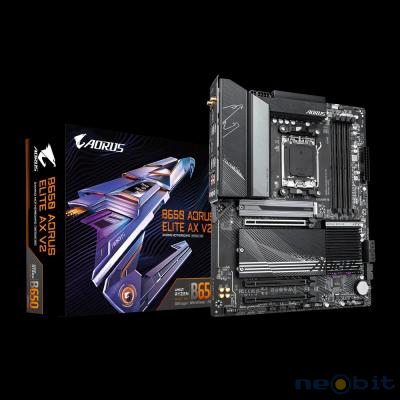

| GIGABYTE B650 AORUS ELITE AX V2, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WiFi 6E, AM5 ATX |
| Cena: 182,67 EUR z DDV |
|
|
| Dobava | 1 dan (Po naročilu, ni na zalogi v trgovini.) |
| Skupina | Komponente | Osnovne plošče |
| Tovarniška koda artikla | B650 A ELITE AX V2 * - s klikom na ta link se vam bo odprlo novo okno z Googlovim poizvedovanjem |
| Garancija | 36 mesecev |
|
PODNOŽJE: AMD AM5ZA PROCESORJE: AMD RYZEN 7000/8000 SeriesFORMAT: ATX format 30.5 cm x 24.4 cmVEZNI ČIP: AMD B650POMNILNIK:4 x DDR5 DIMM non-ECC 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400MHz (odvisno od procesorja) do skupno 192GB kapacitete, dual channel in EXtended Profiles for Overclocking, Extreme Memory Profile (XMP) podporaGRAFIKA: DA - preko APURAID: DA (0,1,10) support for SATA/NVME storage devicesRAZŠIRITVENE REŽE:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) ; Realtek Wi-Fi 6E RTL8852CE, a, b, g, n, ac, ax, supporting 2.4/5/6 GHz, BLUETOOTH 5.3ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)NOTRANJI PRIKLJUČKI:1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumperZUNANJI PRIKLJUČKI:1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)jk1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacksDODATNO:
iTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlBIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusBundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management softwareUradna stran proizvajalca: https://www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-V2 |
 |
|
