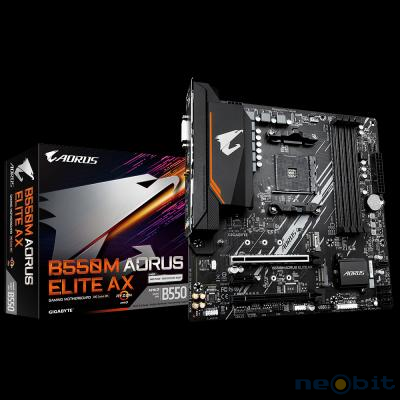

| GIGABYTE B550M AORUS ELITE AX, DDR4, SATA3, USB3.2Gen1, HDMI, AM4 mATX |
| Cena: 112,55 EUR z DDV |
|
|
| Dobava | 1 dan (Po naročilu, ni na zalogi v trgovini.) |
| Skupina | Komponente | Osnovne plošče |
| Tovarniška koda artikla | B550M AORUS ELITE AX * - s klikom na ta link se vam bo odprlo novo okno z Googlovim poizvedovanjem |
| Garancija | 36 mesecev |
|
PODNOŽJE: AMD AM4ZA PROCESORJE: AMD RYZEN 5000/4000/3000FORMAT: mATX format 24.4 cm x 24.4 cmVEZNI ČIP: AMD B550POMNILNIK:4 x DDR4 DIMM ECC/non-ECC do 4733 (O.C.) MHz (odvisno od procesorja) do skupno 128GB kapacitete, dual channel in Extreme Memory Profile (XMP) podporaGRAFIKA: DA - preko APURAID: DA (0,1,10)RAZŠIRITVENE REŽE:1x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 modeAMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:Supporting PCIe 3.0 x1 modeMREŽNA KARTICA: Realtek LAN chip (10/100/1000Mbit) ; Realtek® Wi-Fi 6E RTL8852CE WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz + BLUETOOTH 5.3ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)NOTRANJI PRIKLJUČKI:1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus buttonZUNANJI PRIKLJUČKI:1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port2 x SMA antenna connectors (2T2R)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacksDODATNO:
iTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed controlBIOS1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for APP Center@BIOSEasyTuneRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashBundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management softwareUradna stran proizvajalca: https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13 |
 |
|
