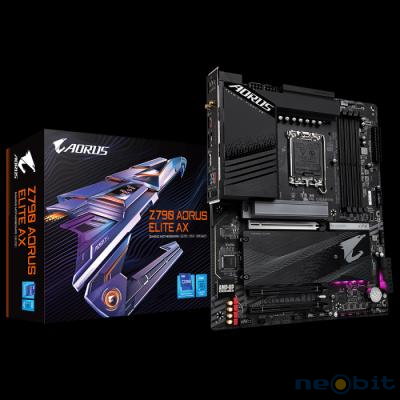

| GIGABYTE Z790 AORUS ELITE AX, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WIFI 6E, LGA1700 ATX |
| Cena: 223,92 EUR z DDV |
|
|
| Dobava | 1 dan (Po naročilu, ni na zalogi v trgovini.) |
| Skupina | Komponente | Osnovne plošče |
| Tovarniška koda artikla | Z790 AORUS ELITE AX * - s klikom na ta link se vam bo odprlo novo okno z Googlovim poizvedovanjem |
| Garancija | 36 mesecev |
|
|
PODNOŽJE: INTEL LGA1700ZA PROCESORJE: 14/13/12 Gen. Intel Core, Pentium and CeleronFORMAT: ATX Form Factor 30.5 x 24.4 cmVEZNI ČIP: Intel Z790 ExpressPOMNILNIK:4 x DDR5 (7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400MHz) do skupno 256GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, podpora za ECC Un-buffered DIMM 1Rx8/2Rx8 in non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16RAID: DA (0,1,5,10) NVMe SATARAZŠIRITVENE REŽE:CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)MREŽNA KARTICA: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) + Wi-Fi 6E + BLUETOOTH 5.3Intel Wi-Fi 6E AX211 (For PCB rev. 1.0 / 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateRealtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.2)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateZVOČNA KARTICA: Realtek High Definition Audio Audio CODECNOTRANJI PRIKLJUČKI:1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumperZUNANJI PRIKLJUČKI:1 x USB Type-C port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI port (Note)1 x DisplayPort (Note)1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksDODATNO:iTE I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlBIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled SoftwareNorton Internet Security (OEM version)LAN bandwidth management softwareUradna stran proizvajalca: https://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10 |
 |
|
